+76
-
Sleeps 4
-
1 Slides
-
Bunk Over CabMurphy Bed
-
25ft Long
-
Huntington

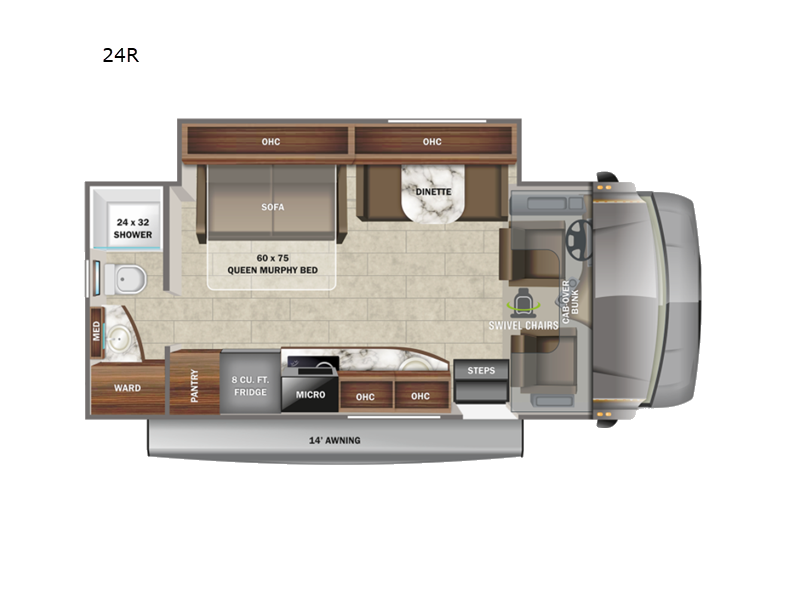

24R Floorplan
Specifications
| Sleeps | 4 | Slides | 1 |
| Length | 25 ft 2 in | Ext Width | 8 ft |
| Ext Height | 10 ft 8 in | Int Height | 6 ft 11 in |
| Interior Color | Huntington | Exterior Color | Standard Graphics; Full-Body Paint: Alloy, Titanium |
| Hitch Weight | 5000 lbs | GVWR | 11030 lbs |
| Fresh Water Capacity | 35 gals | Grey Water Capacity | 31 gals |
| Black Water Capacity | 31 gals | Tire Size | 215/85R16 |
| Furnace BTU | 30000 btu | Generator | Onan 3,600-Watt LP |
| Fuel Type | Diesel | Miles | 16378 |
| Engine | 3.0L V6 BlueTEC Diesel | Chassis | Mercedes-Benz 3500 |
| Horsepower | 188 hp | Fuel Capacity | 26 gals |
| Wheelbase | 170 in | Number Of Bunks | 1 |
| Available Beds | Queen Murphy Bed | Torque | 325 ft-lb |
| Refrigerator Type | Gas/Electric | Refrigerator Size | 8 cu ft |
| Convection Cooking | Yes | Cooktop Burners | 2 |
| Shower Size | 24" x 32" | Number of Awnings | 1 |
| LP Tank Capacity | 41 lbs | Water Heater Capacity | 6 gal |
| Water Heater Type | Gas/Electric | AC BTU | 13500 btu |
| TV Info | LR LED HD Smart Fire TV | Awning Info | 14' Electric w/LED Lights |
| Gross Combined Weight | 15250 lbs | Shower Type | Standard |
| Electrical Service | 30 amp | VIN | 145626 |
Description
Jayco Melbourne Class C diesel motorhome 24R highlights:
- Full-Wall Slide
- Cab-Over Bunk
- Booth Dinette
- 14' Power Awning with LED Lights
- Convection Microwave
Pack up and head to the antique show for the weekend in this versatile coach. There is a sofa within the full-wall slide that includes a queen Murphy bed to sleep on a night, and if you have any friends tag along they can sleep on the booth dinette or cab-over bunk. The full rear bath includes a 24" x 32" shower, a stainless steel sink, plus a large bath wardrobe to store clean towels and toiletries. Head to the kitchen to prepare lunch on the Suburban two burner drop-in cooktop, and you'll appreciate the large pantry for dry goods and snacks. You can choose the optional theater seating in place of the booth dinette, or the optional front entertainment center in place of the cab-over bunk if you're not needing the additional sleeping space.
Each Melbourne Class C diesel motorhome by Jayco features durable Stronghold VBL lamination, bead-foam insulation, and a seamless front cap that resists wear and tear from the elements. There are seatbelts in all designated seating locations, and the captain's seats swivel around so they can become a part of the living area once parked. You'll appreciate an Onan 3,600-watt LP generator on board, as well as a 13,500 BTU A/C and a 30,000 BTU furnace to keep you comfortable year around. The interior of the Melbourne will have you feeling right at home with high-intensity LED lights, an 83" interior height with a padded vinyl ceiling, hardwood cabinet doors and drawers, and more!
Features
Standard Features (2022)
Driving Equipment
- Mercedes-Benz® 3500 chassis with 170 in. wheelbase
- GVWR- 11,030 lb.
- GCWR- 15,250 lb.
- V-6 Turbo 188 HP diesel engine with electronic fuel injection and 325 ft.-lb. torque
- 7-speed automatic transmission
- 220-amp alternator
- E-rated highway tires- 215/85R16
- Front and rear disc, 4-wheel anti-lock brakes
- 5,000 lb. rear hitch receiver with dual connector
- 7-pin plug
- 12V chassis battery
- 26.4 gal. fuel tank
- 5.8 gal. DEF tank
- Driver and passenger airbags
- Power windows and door locks
- Tilt steering wheel
- A/C and cruise control
- Auxiliary start switch
- Privacy curtains for cab area
Exterior Equipment
- Stronghold VBL™ Vacuum-Bond laminated roof, floor and sidewalls
- Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
- TPO laminated roof
- Fiberglass running boards
- Fiberglass exterior walls with vinyl graphics
- Electric stabilizer jacks
- Slideout cover awnings
- Entrance door with industry’s largest travel-view window
- Electric-powered entrance step with integrated house battery compartment
- 12V house battery
- Exterior utility center
- Winterization drain system
- Black tank flush
- Outside shower
- 12V demand water pump
- Onan® 3,600-watt LP generator
- Transfer switch with reverse polarity protection
- 30-amp electrical service
- Solar prep
- 12.2 gal. propane tank (41 lb.)
- LP quick-connect hookup
- Flush-mount LED marker lights
- Third brake light
- Porch light
- 4 in. tube bumper with sewer hose storage
Interior Equipment
- 83 in. interior ceiling height with padded vinyl ceiling
- High-intensity, LED ceiling lights
- LED-lit slideout fascia
- Hardwood cabinet doors and drawers
- Ball-bearing drawer guides
- Jayco-exclusive easy-operation legless dinette table (24R)
- U-shaped dinette with stow away pedestal legs (24L)
- 12V USB charging station in dinette area
- 2-point lap safety belts in all designated seating locations
- Pleated blackout shades
- 13,500 BTU A/C
- 30,000 BTU auto-ignition ducted furnace
- 6 gal. gas/electric water heater and water heater bypass
- Powered roof vent in living area with wall switch
- LED HD Smart Fire TV in Living Area
- Prep for satellite dish
- Cable TV hookup with RG-6 coax
- Digital antenna with signal booster
- 8 cu.ft. gas/electric refrigerator
- Suburban 2-burner, drop-in cooktop with flush cover
- Convection microwave
- LED-lit pressed countertops
- Flip-up countertop extension (select models)
- Stainless-steel sink with wooden cover/cutting board
- Decorative kitchen backsplash
- Water filtration system
- Shower with decorative surround and skylight
- Stainless-steel bathroom sink
- Toilet with foot flush
- Powered roof vent in bathroom with wall switch
- Queen-sized bed with bedspread (24L)
- (2) Twin-sized beds (24T)
- Bedroom TV prep
- Large wardrobes
- Overhead bunk with 750 lb. capacity and safety net
- Smoke alarm
- Carbon monoxide detector
Customer Value Package (Mandatory)
- One-piece, seamless, fiberglass front cap
- Frameless windows
- Heated holding tanks (12V pads)
- Heated, remote-controlled, side view mirrors
- Electric patio awning with LED lights
- Backup and side-view camera
- Remote keyless entry
- Sony® infotainment center with Apple CarPlay® and Android Auto™
- Swivel driver and passenger seats with boosters
Options
- Front entertainment center with 32 in. LED TV
- 3,200-watt diesel generator
- Folding windshield sun shade
- 4-point hydraulic leveling jacks
- Theater seating ILO dinette (24L, 24R)
- 190W solar panel with dual controller and second house battery
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
